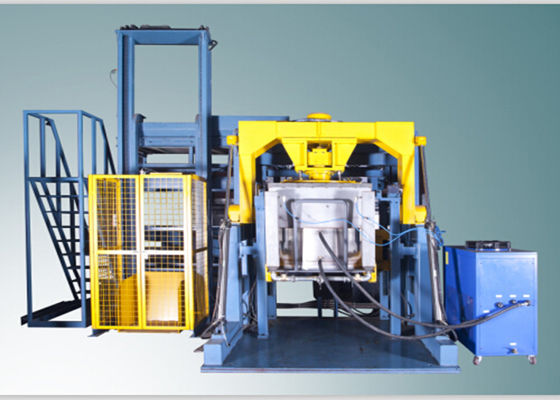

Large Loading Zinc Flake Coating Machine With Operation Control System

China Large Loading Zinc Flake Coating Machine With Operation Control System supplier
Large Loading Zinc Flake Coating Machine With Operation Control System supplier Large Loading Zinc Flake Coating Machine With Operation Control System supplier

Large Image :  Large Loading Zinc Flake Coating Machine With Operation Control System

Product Details:

Place of Origin: Changzhou in china
Brand Name: JUNHE
Certification: ISO9001 TS16949 CE
Model Number: DST SS 800

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: LCL
Delivery Time: One months after receipt of advance payment
Supply Ability: 3 Sets per Month
Contact Now
Detailed Product Description
Centrifugal Motor Power: 7.5kw Installed Capacity:: 25.6 KVA
Max Loading:: 150kg (Including The Basket ) Max Centrifugal Speed:: 300r/min
Min Centrifugal Speed:: 4 R/min Tilting Obliquity:: 75°
Centrifugal Speed/Tilting:: 10~40r/min Name: Auto Zinc Flake Coating Machine

Large Loading Zinc Flake Coating Machine With Operation Control System



Zinc Flake Coating Machine Description:


Paint application : Suitable for any kinds of zinc flake paints and related top coat, seal, teflon coating.



Equipment main body:
Coating machine, weighing loading machine, conveyor distributor, operation control system.



Zinc Flake Coating Machine Features:


1. Tiltable designed to ensure uniform coating of paint, no dead angle, no effusion.
2. More intelligent, high pass rate of production.
3. Manual loading function is available.
4. Can realize remote monitoring, it is convinent and safe to use.



Main Parameter:
  Centrifugal Motor Power: 7.5kw
  Installed Capacity: 25.6 KVA
  Max Loading: 150kg (Including the Basket )
  Max Centrifugal Speed: 300r/min
  Min Centrifugal Speed: 4 r/min
  Tilting Obliquity: 75°
  Centrifugal Speed/Tilting: 10~40r/min
1.1 Rail Transfer and unloading Unit
  Max Transfer Weight: 156kg (Including the Basket )
  Transfer route: 1400mm
  Unloading Max Angle of Rolling: 160°
1.2 Hydraulic & Oil Press Supply Unit
  Function: Supplying hydraulic power to the coating machine
  Max Pressure Supply: 5MPa
  Max Working Flow: 24L/Min
1.3 Controlling & Operating System
  Data/Processing Storage: 2M (5000 ~8000pcs coating processes can be stored)
  Operation Panel: Touch Screen
  Language: English & chinese Language
1.4 Basket
  Function: Loading workpieces for dipping & spinning
  Diameter of Basket: Φ800 mm*450 mm
  Lated Loading: 100kg (Max)
  Weight: 45kg
1.5 Dip / Pumping Barrel with Cooling jecket
  Function: Stirring & filtering to keep the solution in good working condition.
  Max Loading: 350 L
    It can be linked with a chiller.
1.6 Dip Barrel Lifting Platform Unit
  Function: Lifting the Dip/pumping Barrel to the dipping position
  Lated lifting capacity: 750kg
  Lated height of lifting: 950mm
1.7 Lift-weight-loading Unit
  Function: Lift and load the workpieces into the basket , according to the pre-setting weight data.
  Power: 1.5kw
  Max Lifting: 500kg
1.8 Linking Conveyor Feeder
  Function: Spreading and forwarding the workpieces onto the mesh belt of the furnace
  Power: 0.75kw
  Effective Width of Mesh Belt: 800mm
  Forwarding method: Program-controlled Receiving parts from the coater with high speed and unloading the parts onto the belt of furnace with low speed
  Woking Conditions of the LINE
  Woking Site Inside ( Free from corrosion and combustible gas
  Ambient Tempreture 5-40℃ (For the LINE only . Please contack your supplier for solution.
  Ambient Humidity 35%RH-85%RH (For the LINE only . Please contack your supplier for solution .
  Power AC 380V±10%,50HZ±1%, 3 phases 5 wires
  Compressed Air 3 m3/min, Pressure≥6.5-7Kgf/cm2, Oleaginousness ≤0.1PPM,
  Water Pressure ≥2-4 Kgf/cm2

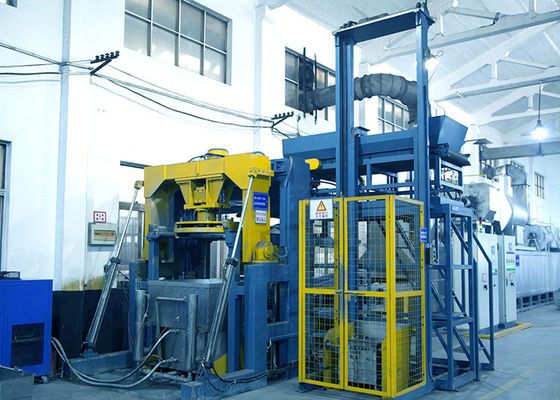

Large Loading Zinc Flake Coating Machine With Operation Control System
