Low Noise Coating Curing Furnace Heat Treatment Furnace Low Energy Consumption

Low Noise Coating Curing Furnace Heat Treatment Furnace Low Energy Consumption

Low Noise Coating Curing Furnace Heat Treatment Furnace Low Energy Consumption

Brand Name:	JUNHE
Model Number:	FG1212
MOQ:	1 Set
Price:	Negotiable
Supply Ability:	2 Sets per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Changzhou in china

Certification:

ISO9001 CE

Color:

Silvery

Inside Dimension:

12m*12m*0.3m

Heating Capacity:

400000kcal/h

Max Curing Temperature:

350℃

Temperature Uniformity Control:

±5℃

Avg.heating Up Time:

40min

Max Load Capacity/mesh-belt:

200kg/㎡

Max Output:

8000kg/h

Belt Convey Speed:

0.23~0.52

Avg.gas Consumption:

20m³/h

Packaging Details:

40 HQ

Supply Ability:

2 Sets per Month

Highlight:

Heat Treatment Furnace

,

Galvanic Zinc Coating

Product Description

Low energy consumption Low Noise Coating Furnace Metal Coating Line Inside dimension 14m*12m*0.3m Heating Capacity is 400000kcal/h

Product Description

1. Technological process:

Loading→Leveling→Drying(Pre-heating)→Curing→Cooling and unloading

2. Main structure:

Mainly structured of Loading and uncloading sections , HL Cooling System, Convey Unit, Body, Hot Blast Air Generating and Circulating Systems, Electric Control System and so on. High-automaticly controlled with the speed of mesh-blet regulated, it can fully satisfy all curing processes.

3. Main parameter : (Based on M10)

Outsiade dimension	23×15.9×16.6	m
Inside dimension	14×12×0.3	m
Max curing temperature	350	℃
Temperature uniformity control	±5	℃
Max load capacity/mesh-belt	200	kg/m²
Avg.gas consumption	20	m³/h
Max output	8000	kg/h
Belt convey speed	0.23~0.52	m/min

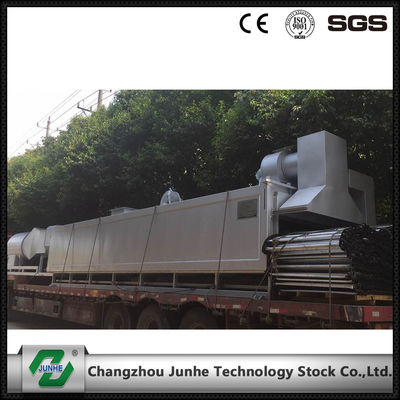

Low Noise Coating Curing Furnace Heat Treatment Furnace Low Energy Consumption 0

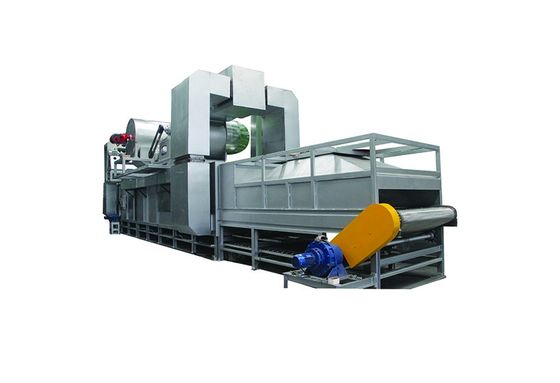

Low Noise Coating Curing Furnace Heat Treatment Furnace Low Energy Consumption 1
