Low Noise Coating Furnace Heat Treatment Furnace High Effcient 14m12m0.3m

Brand Name:	JUNHE
Model Number:	FG1412
MOQ:	1 Set
Price:	Negotiable
Supply Ability:	2 Sets per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Changzhou in china

Certification:

ISO9001 CE

Color:

Silvery

Inside Dimension:

14m*12m*0.3m

Heating Capacity:

400000kcal/h

Max Curing Temperature:

350℃

Temperature Uniformity Control:

±5℃

Avg.heating Up Time:

40min

Max Load Capacity/mesh-belt:

200kg/㎡

Max Output:

8000kg/h

Packaging Details:

40 HQ

Supply Ability:

2 Sets per Month

Highlight:

Heat Treatment Furnace

Galvanic Zinc Coating

Product Description

Low Noise Coating Furnace Metal Coating Line Inside dimension 14m*12m*0.3m Heating Capacity is 400000kcal/h

Product Description

1. Technological process:

Loading→Leveling→Drying(Pre-heating)→Curing→Cooling and unloading

2. Main structure:

Mainly structured of Loading and uncloading sections , HL Cooling System, Convey Unit, Body, Hot Blast Air Generating and Circulating Systems, Electric Control System and so on. High-automaticly controlled with the speed of mesh-blet regulated, it can fully satisfy all curing processes.

3. Main parameter : (Based on M10)

Outsiade dimension	23×15.9×16.6	m
Inside dimension	14×12×0.3	m
Max curing temperature	350	℃
Temperature uniformity control	±5	℃
Max load capacity/mesh-belt	200	kg/m²
Avg.gas consumption	20	m³/h
Max output	8000	kg/h
Belt convey speed	0.23~0.52	m/min

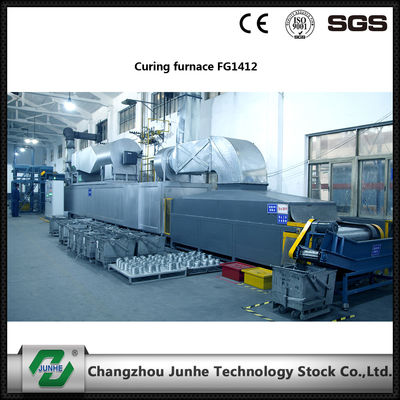

Low Noise Coating Furnace Heat Treatment Furnace High Effcient 14m*12m*0.3m 0

Low Noise Coating Furnace Heat Treatment Furnace High Effcient 14m*12m*0.3m 1

Low Noise Coating Furnace Heat Treatment Furnace High Effcient 14m*12m*0.3m 2

Company research and development center is located in changzhou national hi-tech zone, owns 15 acres of land for construction and is built around five categories of chemicals and equipment research and development and incubation bases, equipped with standardization on the basis of the experimental equipment and testing equipment of the company's marketing center and two functional departments in the changzhou new north area to create building, the company's three big center and subsidiary system solution for customer demand to provide a solid foundation. The company has passed ISO9001 and TS16949 system certification.
