|Lifting Weight:||50kg||Weighing Deviation:||±1kg|
|Capacity:||50kg/basket,150kg/set||Shortest Cycle:||2 Mins|
|Max. Capacity:||1.8 Tons/hour||Width Of Mesh Belt:||450mm|
|Name:||Dip Spin Coating Machine||Origin:||China|
automatic coating machine,
dip coating system

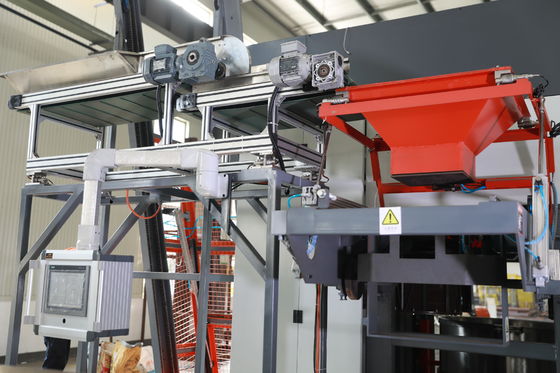

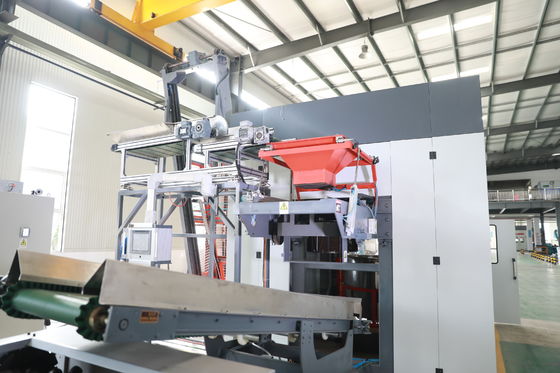

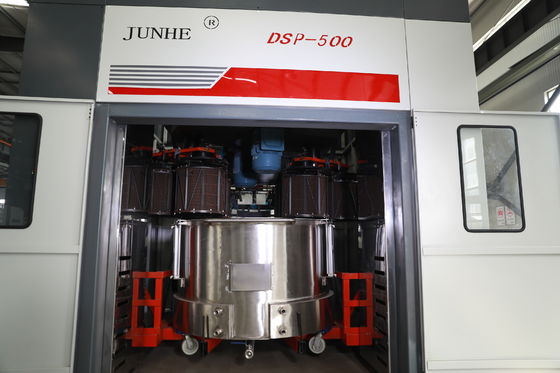

Junhe planetary coating machine(DSP T500) patented planetary coating machine,planetary centrifugal type
1. Junhe patented planetary coating machine, planetary centrifugal type, automatic control, process under complete control.
2. Suitable for all kinds of paints including Zinc Aluminum flake microlayer corrosion coating, top coat, sealing agent, Teflon, etc. Suitable for coating workpieces including small-size inner hexagon socket bolt, internal torx, inner cross, outer hexagon socket bolt, stamping parts, etc.
3. Intelligent weighing for 2 times, reduce deviation, ensure full-time dynamic balance, full automatic loading.
4. Basket planetary distribution, combines revolution with autorotation, reversing to make the workpiece position interchangeable, remove the workpiece remained fluid effectively, get the high qualification rate.
5. Intelligent feeding system, connection for each basket, workpieces evenly spread, to avoid accumulation.
6. One-button intelligent start, transmission speed in frequency conversion and adjustable, high degree of automation, reduce production cost, fully controlled , timely test and feedback, to meet customer's curing process requirements.
7. Automatic unloading, high production efficiency, low labor cost.
8. Integrated control system, intelligent operation interface, real-time monitoring and alarming throughout the whole process, intelligent display of fault code, set system language on demand.
|Suitable for||blind hole, inner hex socket, inner cross and other special shape workpieces|
|Shortest cycle||2 mins|
|Max. capacity||1.8 tons/hour|
|Width of mesh belt||450mm|
|Furnace temperature precision||±5℃|
|Width of mesh belt||370MM|
