Product Details:
|
Color: | Silvery | Inside Dimension: | 18m*12m*0.3m |
---|---|---|---|
Heating Capacity: | 100000+450000kcal/h | Max Curing Temperature: | 350℃ |
Temperature Uniformity Control: | ±5℃ | Avg.heating Up Time: | 30min |
Max Load Capacity/mesh-belt: | 300kg/㎡ | Max Output: | 10000kg/h |
High Light: | vertical aluminium induction furnace,Large chamber aluminium induction furnace,vertical tunnel furnace |

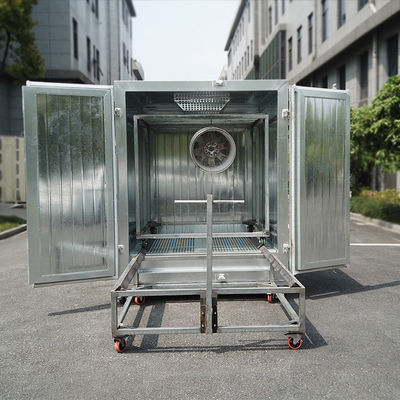

Composite curing heating oven furnace
1. Stainless steel, durable;
2. High-temperature proof fan;
3. Large curing chamber;
4. Size is custom as per requirements of the customer;
5. Widely used for various composite curing
1. Technological process:
Loading→Leveling→Drying(Pre-heating)→Curing→Cooling and unloading
2. Main structure:
Mainly structured of Loading and uncloading sections , HL Cooling System,Convey Unit,Body, Hot Blast Air Generating and Circulating Systems, Electric Control System and so on. High-automaticly controlled with the speed of mesh-blet regulated,it can fully satisfy all curing processes.
3. Main parameter : (Based on M10)
Outsiade dimension | 29×15.9×16.6 | m |
Inside dimension | 18×12×0.3 | m |
Max curing temperature | 350 | ℃ |
Temperature uniformity control | ±5 | ℃ |
Max load capacity/mesh-belt | 300 | kg/m² |
Avg.gas consumption | 28 | m³/h |
Max output | 10000 | kg/h |
Belt convey speed | 0.3~0.67 | m/min |
Changzhou Junhe Technology Stock Co., Ltd. Is A High-Tech Enterprise Devoted To Developing Industrial Fine Chemicals, Special Equipment And Services Solution Provider Which Was Founded In Changzhou, Jiangsu In 1998.
Zinc Flake Microlayer Corrosion Protection Coating Is One Of Our Core Products, Our Company Draw On The Experience And Lesson Of Dacromet Coating Technology From Japan And Usa, Investing Millions On R&D, After 20 Years Application And Diffusion, Junhe Zinc Flake Microlayer Corrosion Protection Coating Already Become One Of The Leading Brand In China.
Our Company Have Three Industrial Base: Chemical Production Base, Equipment Production Base, Coating Job Processing Base.
