Product Details:
|
| Max Loading: | 200kg With The Basket | Max Centrifugal Speed: | 350r/min |
|---|---|---|---|
| Tilting Obliquity: | 75° | Weight: | 7MT |
| High Light: | zinc Double Basket Coating machine,350r/min Dip Spin Coating machine,Double Basket zinc coating equipment |
||

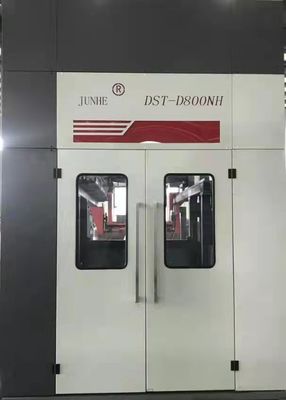

JUNHE®manual/auto dip spin double basket coating machine can meet the coating requirement of blind hole automotive fasteners,hardware parts, batch control,high production rate,it can be centrifuged horizontally and vertically at nearly 90 degree, safety and environmental friendly, prevent mixing materials,double basket,low operating cost, informatization,intelligent and IOT upgrade.
Patent No.2019215906074 2019215905940 2019206647403
2019212924808 2021210792178 2021214748579
Functional Proprty
1, Module standardization: modular,standardized design,connect with electric cabinet,whole machine assembly,easy installation,intelligent selection,easy upgrade,matching with Junhe standard curing furnace.
2, Wide range of coated parts: with automatic and manual loading function,small parts automatic loading,big parts manual loading,preventing bumps.
3, High efficiency: two-mode centrifugation,single basket tilting with high-speed centrifugation,besides low-speed tilting turning function,add lateral high-speed centrifugation,coating layer surface uniform,reduce the effusion rate of blind hole parts,double basket design,improveefficiency.
4, Excellent safety and environmental friendly: jacket centrifugal structure,no liquid splashing, integral enclosed design, centralized collection of exhaust air,suitable for water-base and solvent-base paint,moisture and explosion proof, modular optional.
5, Excellent batch management: each batch of workpiece weighing according to the process requirements,the whole process automatic operation,can monitor the whole process,record optional.No risk of parts stuck.
Technical Parameter
| Basket diameter | Ø800mm | Max loading capacity |
200kg/basket |
| Shortest production cycle | 160s | Max capacity | 4500kg/h |
| Vertical centrifugal speed | 4~350 r/min | Horizontal centrifugal speed | 4~250 r/min |
| Max tilting angle | 75° | Suitable workpieces length | ＜550mm |
| Machine size | 3500×3500×4500mm | Total power | ≤29kw |
| Suitable furnace | Junhe mesh belt curing furnace,stepping tray-type curing furnace | Suitable paint | All types water-base and solvent-base paint |
| Suitable workpieces | ＜550mm external and internal hexagon bolts,cross bolts,nuts,stamping parts | ||
*The above performance parameters may vary due to manufacturing process,electrical selection,installation size workpiece shape and process selection.
