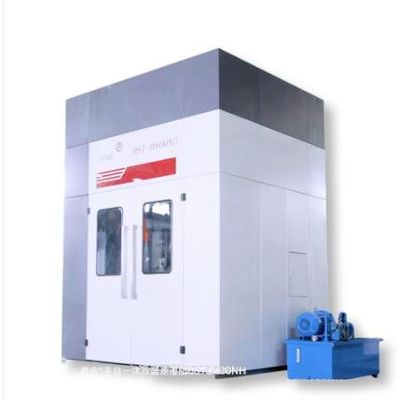

Metal Hardware PVD Vacuum Coating Machine /Stainless Steel Products PVD Coating Machine







360 r / min Max Spinning Speed Zinc Flake Coating Machine With Dip Spin Coating System Max capacity 1800kg/h



Product Description



DSP T400 Suitable for any kinds of zinc flake paints and related top coat, seal, teflon coating.





Equipment main body:

1. Weighing loading system.

2. Dip-spin coating system.

3. Conveyor distributor.

4. Operation control system.





Features:



Basket planet type configuration, every time convert direction can realize the workpiece location swap, the qualified rate of blind hole workpieces is very high, full automatic design, efficient and energy saving.





Main parameter:



Main Parameter:
	Centrifugal Motor Power:				7.5kw
	Installed Capacity:				28 KVA
	Max Loading:				160kg (Including the Basket )
	Max Centrifugal Speed:				320r/min
	Min Centrifugal Speed:				5r/min
	Tilting Obliquity:				75°
	Centrifugal Speed/Tilting:				10~40r/min
1.1	Rail Transfer and unloading Unit
	Max Transfer Weight:				160kg (Including the Basket )
	Transfer route:				1450mm
	Unloading Max Angle of Rolling:				180°
1.2	Hydraulic & Oil Press Supply Unit
	Function:				Supplying hydraulic power to the coating machine
	Max Pressure Supply:				5MPa
	Max Working Flow:				24L/Min
1.3	Controlling & Operating System
	Data/Processing Storage:				2M (5000 ~8000pcs coating processes can be stored)
	Operation Panel:				Touch Screen
	Language:				English & chinese Language
1.4	Basket
	Function:				Loading workpieces for dipping & spinning
	Diameter of Basket:				Φ800 mm*500 mm
	Lated Loading:				120kg (Max)
	Weight:				48kg
1.5	Dip / Pumping Barrel with Cooling jecket
	Function:				Stirring & filtering to keep the solution in good working condition.
	Max Loading:				360 L
					It can be linked with a chiller.
1.6	Dip Barrel Lifting Platform Unit
	Function:				Lifting the Dip/pumping Barrel to the dipping position
	Lated lifting capacity:				850kg
	Lated height of lifting:				1000mm
1.7	Lift-weight-loading Unit
	Function:				Lift and load the workpieces into the basket , according to the pre-setting weight data.
	Power:				1.5kw
	Max Lifting:				500kg
1.8	Linking Conveyor Feeder
	Function:				Spreading and forwarding the workpieces onto the mesh belt of the furnace
	Power:				0.75kw
	Effective Width of Mesh Belt:				800mm
	Forwarding method:				Program-controlled Receiving parts from the coater with high speed and unloading the parts onto the belt of furnace with low speed
	Woking Conditions of the LINE
	Woking Site				Inside ( Free from corrosion and combustible gas
	Ambient Tempreture				5-40℃ (For the LINE only . Please contack your supplier for solution.
	Ambient Humidity				35%RH-85%RH (For the LINE only . Please contack your supplier for solution .
	Power				AC 380V±10%,50HZ±1%, 3 phases 5 wires
	Compressed Air				3 m3/min, Pressure≥6.5-7Kgf/cm2, Oleaginousness ≤0.1PPM,
	Water				Pressure ≥2-4 Kgf/cm2

Suitable workpiece : small hex socket, torx head bolt, inner hexagon bolt, outer hexagon bolt,

stamping parts which suitable for dip spin coating.

Minimum Order Quantity: 1 Set
Packaging Details: 20 GP
Delivery Time: Three months after receipt of advance payment
Supply Ability: 1 Set per Month

Color:Red & Gray
Max Load Of Basket: 30kg
Max Spinning Speed:0-300r/min
Shortest Production Rate: 120s
Max Capacity: 2000kg/h
Suitable Workpiece Weight: ≤500g
Suitable Workpiece Length: ≤10cm
