Product Details:
|
| Power: | Zinc Flake Coating Machine | Max Loading: | 150kg With The Basket |
|---|---|---|---|
| Max Centrifugal Speed: | 280r/min | Min Centrifugal Speed: | 50 R/min |
| Tilting Obliquity: | 85° | Centrifugal Speed/Tilting: | ≤80r/min |
| Weight: | 7MT | Working Space: | 2300mm*3050mm*2800mm |
| Highlight: | Zinc Coating Machine,Metal Coating Machine |
||

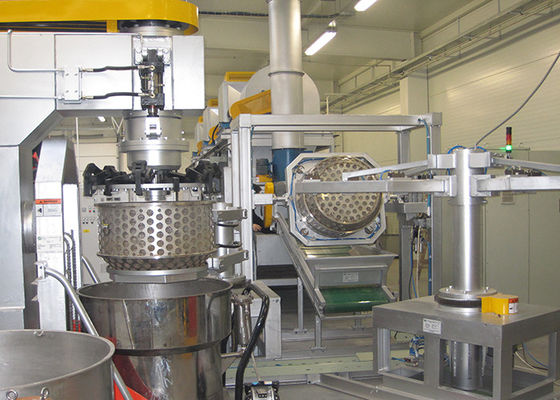

High Speed Zinc Flake Coating Machine For Metal Flake Paint 280r/Min
| Main Units | |||
| No. | Description | QNT | Unit |
| 1 | Spin-Tilting Unit | 1 | Set |
| 2 | Hydraulic & Oil Press Supply Unit | 1 | Set |
| 3 | Controlling & Operating Cabinet | 1 | Set |
| 4 | Basket | 2 | PC |
| 5 | Dip / Pumping Barrel with Cooling jecket | 1 | set |
| 6 | Dip Barrel Lifting Platform Unit | 1 | set |
| 7 | Lift-weight-loading Unit | 1 | set |
| 8 | One-Arm Forwarding Platform | 1 | set |
| 9 | Two-Arms Forwarding Platform | 1 | set |
| 10 | Unloading Platform | 1 | set |
| 11 | Linking Feeder | 1 | set |
| 1 | Spin-Tilting Unit | |
| Function | Dip ,Spin and Tilting+spin / Remowal excess solution | |
| Main Parameter | ||
| Power : | 1.1kw+5.5kw | |
| Max Loading | 150kg with the basket | |
| Max Centrifugal Speed | 280r/min | |
| Min Centrifugal Speed | 50 r/min | |
| Tilting Obliquity | 85° | |
| Centrifugal Speed/Tilting | ≤80r/min | |
| Weight | 7MT | |
| Working Space | 2300mm*3050mm*2800mm | |
| 2 | Hydraulic & Oil Press Supply Unit | |
| Function | Supplying hydraulic power to Unit 1; 6 and 8; | |
| Main Parameter | ||
| Power | 5.5kw | |
| Max Pressure Supply : | 15MPa | |
| Max Working Flow | 20L/Min | |
| Weight | 1500kg | |
| Working Space | 1050x950x1050 mm | |
| 3 | Controlling & Operating Cabinet | |
| Function | Operating and Controlling the whole coating units running. | |
| Main Parameter | ||
| Data/Processing Storage | 2M | |
| Operation Panel : | Touch Screen | |
| Language | Chinese/English/ Loacl Language | |
| Weight | 700kg | |
| Working Space | 2500 x 550x1880mm | |
| 4 | Basket | |
| Function | Loading workpieces for dipping & spining | |
| Main Parameter | ||
| Diameter of Basket | Φ750 mm*450 mm | |
| Lated Loading | 80kg | |
| Weight | 42kg | |
| 5 | Dip / Pumping Barrel with Cooling jecket | |
| Function | Stirring & filtering to keep the solution in good working condition. | |
| Main Parameter | ||
| Barrel Construction | Double-bowl with tempreture contorl system | |
| Max Loading | 150 L | |
| Stirring & Fitering time | Adjustable | |
| Meassurement / outside | Ø900 x Ø1200 x 945 mm | |
| Diemeter of Rim & bottom | Ø930mm & Ø790mm | |
| Weight | 500kg | |
| 6 | Dip Barrel Lifting Platform Unit | |
| Function | Lifting the dip/pumping barrel(Unit 5) in the dipping position | |
| Main Parameter | ||
| Lated lifting capacity | 450kg | |
| Max height of lifting | 900m | |
| Weight | 800kg | |
| Meassurement: | 1080 x 925 x 1600 mm | |
| 7 | Lift-weight-loading Unit | |
| Function | Lift and load the workpieces into the basket , according to the pre-setting weight data. | |
| Main Parameter | ||
| Power | 2.2kw | |
| Max Lifting | 500kg | |
| Weight | 1500kg | |
| Working Space | 750 x 1080 x3505mm | |
| 8 | One-Arm Forwarding Platform | |
| Function | Liking up the transaction between Unit 9 with Unit 1； Unit 1 with Unit 10 & Unit 10 with Unit 9 | |
| Main Parameter | ||
| Power | 0.37kw | |
| Max Delever Weight | 150kg | |
| Delever Direction | 270° Horizontal | |
| Lifting height | 100mm | |
| Weight | 500kg | |
| Working Space | Ø3.5m | |
| 9 | Two-Arms Forwarding Platform | |
| Function | Transfer the basket to One-Arm Forwarding Platform | |
| Main Parameter | ||
| Power | 0.37kw | |
| Max Delever Weight | 150kg | |
| Delever Direction | 360° Horizontal | |
| Weight | 500kg | |
| Working Space | Ø2.5m | |
| 10 | Unloading Platform | |
| Function | Unloading the workpieces coated out of the basket onto the Linking Feeder | |
| Main Parameter | ||
| Power | 0.37kw | |
| Max Delever Weight | 150kg | |
| Max Angle of Rolling | 270° | |
| Weight | 1000kg | |
| Working Space | 1720 x 880 x 2180mm | |
| 11 | Linking Feeder | |
| Function | Spreading and forwarding the workpieces onto the mesh belt of furnace | |
| Main Parameter | ||
| Power | 0.75kw | |
| Effective Width of Mesh Belt : | 800mm | |
| Forwarding method | Program-controlled Receiving parts from the coater with high speed and unloading the parts onto the belt of furnace with low speed | |
