Metal Spray Coating Tunnel Kiln With Belt Conveyor

Metal Spray Coating Tunnel Kiln With Belt Conveyor

Brand Name:	JUNHE
Model Number:	FG1212
MOQ:	1 Set
Price:	Negotiable
Supply Ability:	2 Sets per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Changzhou in china

Certification:

ISO9001 CE

Color:

Silvery

Inside Dimension:

12m*12m*0.3m

Heating Capacity:

400000kcal/h

Max Curing Temperature:

350℃

Temperature Uniformity Control:

±5℃

Avg.heating Up Time:

40min

Max Load Capacity/mesh-belt:

200kg/㎡

Max Output:

8000kg/h

Belt Convey Speed:

0.23~0.52

Avg.gas Consumption:

20m³/h

Packaging Details:

40 HQ

Supply Ability:

2 Sets per Month

Highlight:

Spray Coating tunnel kiln

Metal Coating tunnel kiln

belt conveyor tunnel Furnace

Product Description

Low energy consumption Low Noise Coating Furnace Metal Coating Line Inside dimension 14m*12m*0.3m Heating Capacity is 400000kcal/h

* The out frame of the preheating furnace is manufactured by the material of section steel and plate. The liner is of the material of heat-resistant stainless steel plate. PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
* High quality of aluminum silicate wool is used between the outer cover plate and the furnace for thermal insulation. Box type furnaces and horizontal furnaces are equipped with hot air circulation fans according to the request.
* The heat made by the heating pipe is evenly blew to the furnace through the fan for heating the work piece and form a heat circulation system with comparatively even temperature.

Product Description

1. Technological process:

Loading→Leveling→Drying(Pre-heating)→Curing→Cooling and unloading

2. Main structure:

Mainly structured of Loading and uncloading sections , HL Cooling System, Convey Unit, Body, Hot Blast Air Generating and Circulating Systems, Electric Control System and so on. High-automaticly controlled with the speed of mesh-blet regulated, it can fully satisfy all curing processes.

3. Main parameter : (Based on M10)

Outsiade dimension	23×15.9×16.6	m
Inside dimension	14×12×0.3	m
Max curing temperature	350	℃
Temperature uniformity control	±5	℃
Max load capacity/mesh-belt	200	kg/m²
Avg.gas consumption	20	m³/h
Max output	8000	kg/h
Belt convey speed	0.23~0.52	m/min

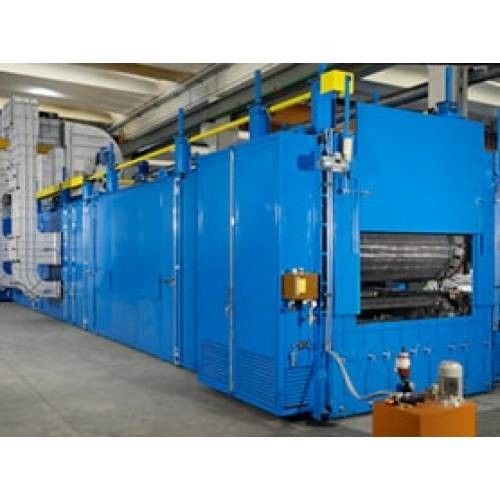

Metal Spray Coating Tunnel Kiln With Belt Conveyor 0

Metal Spray Coating Tunnel Kiln With Belt Conveyor 1
