Product Details:
|
| Color: | Silvery | Inside Dimension: | 12m*12m*0.3m |
|---|---|---|---|
| Heating Capacity: | 400000kcal/h | Max Curing Temperature: | 350℃ |
| Temperature Uniformity Control: | ±5℃ | Avg.heating Up Time: | 40min |
| Max Load Capacity/mesh-belt: | 200kg/㎡ | Max Output: | 8000kg/h |
| Belt Convey Speed: | 0.23~0.52 | Avg.gas Consumption: | 20m³/h |
| Highlight: | automatic aluminum casting furnace,Metal Coating aluminum melting machine,Metal Coating aluminum casting furnace |
||

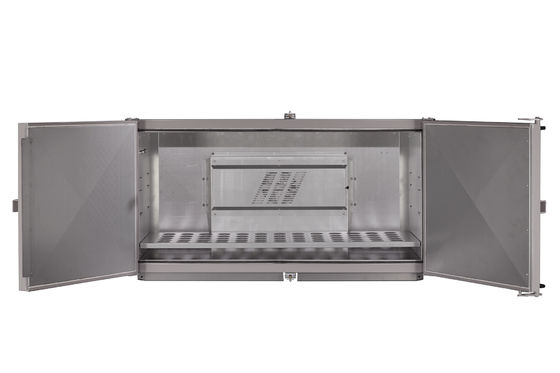

This type of equipment adopts a double-side air duct for air outlet, corresponding to the return air pressure of the top air duct. The heating element is installed in the side air duct of the oven, the circulation motor is installed on the top of the oven, the door is opened, and the door buckle uses a rocker handle, which can be effective Prevent heat loss in the box. The electrical control box is mounted on the left side of the box, which can effectively prevent the high temperature from affecting the aging of electrical components in the electrical box.
1. Technological process:
Loading→Leveling→Drying(Pre-heating)→Curing→Cooling and unloading
2. Main structure:
Mainly structured of Loading and unloading sections, HL Cooling System, Convey Unit, Body, Hot Blast Air Generating and Circulating Systems, Electric Control System and so on. High-automatically controlled with the speed of mesh-blet regulated, it can fully satisfy all curing processes.
3. Main parameter : (Based on M10)
|
Outside dimension
|
23×15.9×16.6 | m |
|
Inside dimension
|
14×12×0.3 | m |
|
Max curing temperature
|
350 | ℃ |
|
Temperature uniformity control
|
±5 | ℃ |
|
Max load capacity/mesh-belt
|
200 | kg/m² |
|
Avg.gas consumption
|
20 | m³/h |
|
Max output
|
8000 | kg/h |
|
Belt convey speed
|
0.23~0.52 | m/min |
