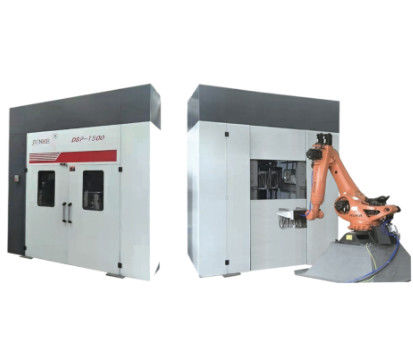

Oil Based Seal Large Loading Zinc Flake Coating Machine

Name: Oil Based Seal Large Loading Zinc Flake Coating Machine
Brand: Changzhou Junhe Technology Stock Co.,Ltd.
SKU: DS TT 650
Price: 6.30 USD
Availability: InStock

Brand Name:	JUNHE
Model Number:	DS TT 650
MOQ:	1 Set
Price:	Negotiable
Supply Ability:	3 Sets per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Changzhou in china

Certification:

ISO9001 TS16949 CE

Production Time:

Dip Spin Coating Machine

Basket Effective Diameter:

Φ650mm

Basket Effective Height:

500mm

Load Of Basket:

Max80Kg

Main Centrifugal Speed:

200-350r/min

Color:

Gray

Power Consumption:

25KW

Name:

Auto Zinc Flake Coating Machine

Packaging Details:

LCL

Supply Ability:

3 Sets per Month

Highlight:

Oil Based Zinc Flake Coating Machine

Gray Zinc Flake Coating Machine

Oil Based Dip Spin Coating Machine

Product Description

High Quality Oil Based Seal Large Loading Zinc Flake Coating Machine

DS TT 650 Auto Zinc Flake Coating Machine

Production process:

Loading→Dipping→Centrifugal(Tilting)→Unloading

Article No:JH-QT-650

Auto Zinc Flake Coating Machine Main parameter:

No.	Name and Specification
1	Production time:5min/basket
2	Basket effective diameter:Φ650mm
3	Basket effective height:500mm
4	Load of basket:Max80Kg
5	Compressed air consumption:Total compressed air≥0.3Mpa,Air consumption:1.0-1.5m³/min
6	Main centrifugal speed:200-350r/min Stepless adjustable
7	Tilting centrifugal speed:30-80r/min Stepless adjustable
8	With 1set 3HP chiller,Heating power:6 KW.
9	Hydraulic station pressure:7.0Mpa
10	Dry Chamfer maximum angle:45°
11	Power consumption:25KW

Auto Zinc Flake Coating Machine Main feature:

1. Dipping and spinning separately,each as a whole,meet different customer needs.

2.Centrifugal Adopt spring automatic centering, whole dynamic balance(this is my company's patented product).

3.During centrifugal process,can be tilted as angle,make the workpiece automatically turn,help with blind holes and grooves of work-piece coating liquid accumulation inside out, so that the coating is more uniform

Oil Based Seal Large Loading Zinc Flake Coating Machine 0
